Product

Vacuum Valve / Total Solution

Throttle Valve

Flange
All models are available.
Size (ID)
ISO (200-1000) / Other requests

BLADE (Pendulum)

  • I
  • S
  • O
  • -
  • -
  • -
  • -
  • -
  • -
  • -

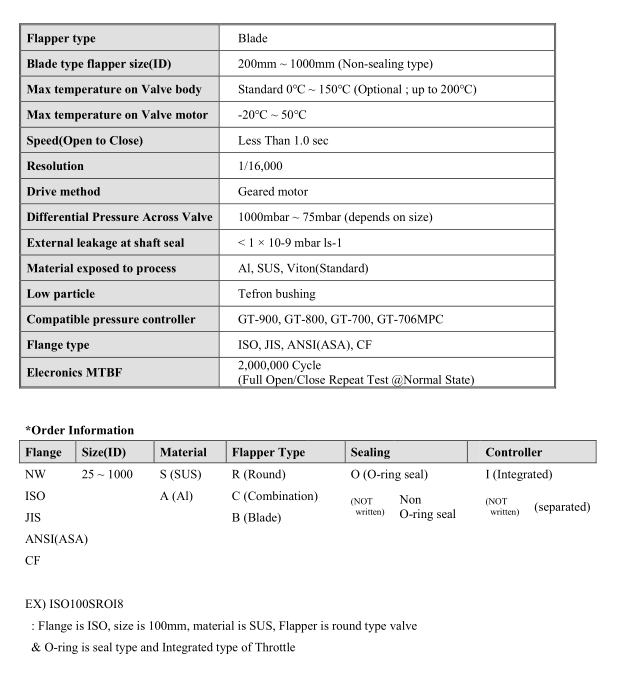

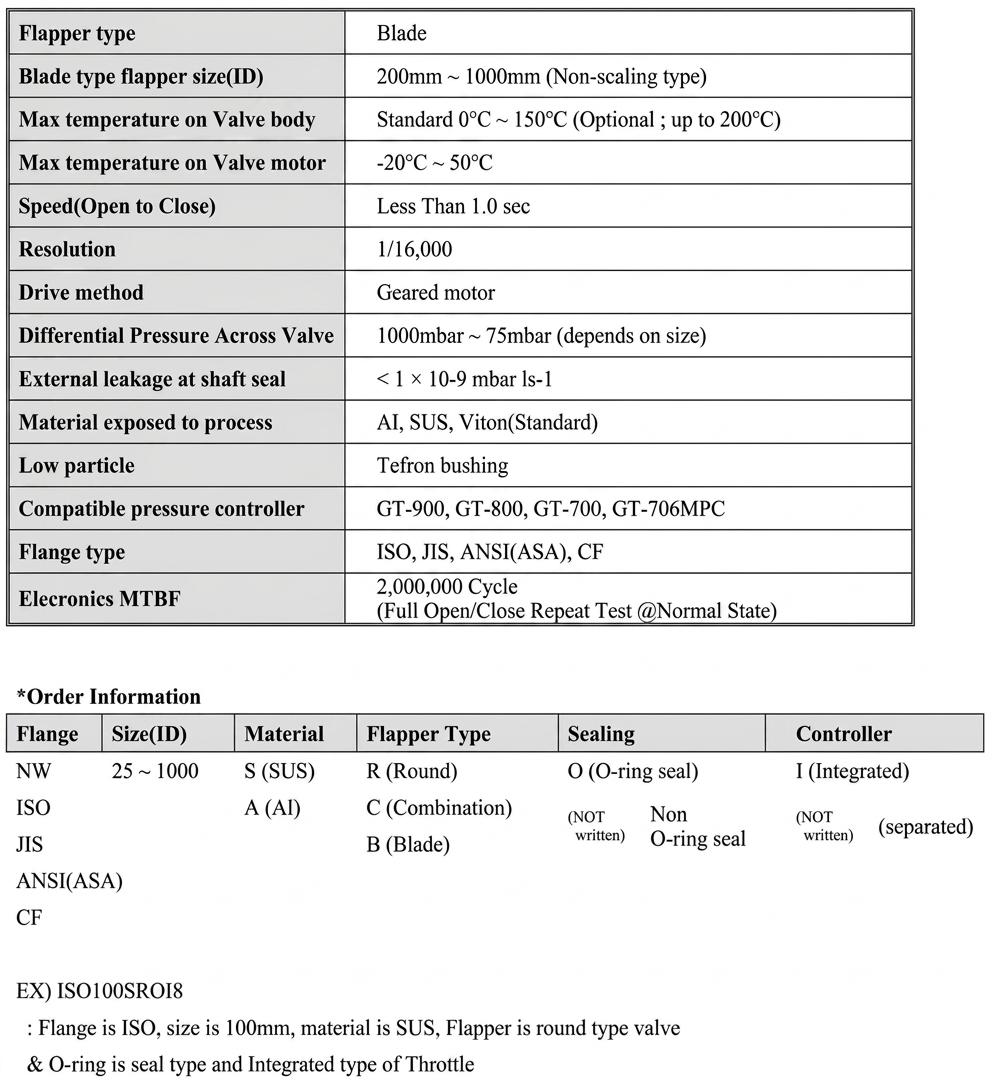

* Movement* Spec



Round Type Throttle Valve with a large size should open 90° to free up and down space as shown in the figure.

The Blade Type, like the window's blend, divides the flapper into several parts and operates only in the upward direction, reducing overall space and cost.


 (The appearance is the same regardless of the material)







LIST
